Probe Options

Probes amplify and radiate the ultrasonic energy into the sample. All probes are fabricated from titanium alloy Ti-6Al-4V and are autoclavable. Each ultrasonic processor includes a standard probe which can be substituted for a different size or accessory if requested.

Tip Diameter
5/64" (2mm)

Volume
0.2-5mL

Amplitude
135μm

Part No.
630-0423

2mm Probe Option

Tip Diameter
1/8" (3mm)

Volume
0.5-15mL

Amplitude
170μm

Part No.
630-0422

3mm Probe Option

Tip Diameter
1/4" (6mm)

Volume
10-50mL

Amplitude
120μm

Part No.
630-0435

6mm Probe Option

Tip Diameter
1/2" (12mm)

Volume
50-150mL

Amplitude
45μm

Part No.
630-0504

Only for 130W models

12mm Probe Option

Support Stand with Clamp

Securely support your ultrasonic processor with a chemically resistant plastic holder on a 51/2" x 9" cast-iron base with 1/2" diameter rod.

The converter clamp and support stand can be ordered separately.



Part No.
830-00460

Support Stand with Clamp

Support Stand Clamp

Part No.
830-00118



Part No.
830-00109

Support Stand

Sound Abating Enclosure

Ultrasonic processing produces high pitched noise, which originates from the vessel walls and the liquid surface. The sound enclosure reduces the noise to comfortable levels. A support rod and converter clamp are included. Access ports are available on both sides and the top of the enclosure.

Outer Dimensions
(H x W x D) 20" x 12" x 12" (508 x 305 x 305 mm)

Inner Dimensions
(H x W x D) 181/2" x 11" x 11" (470 x 280 x 280 mm)

Sound Enclosure


Part No.
830-00451

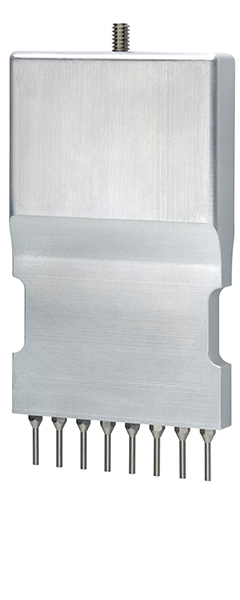

Eight Element Probe

The eight-element probe increases productivity and minimizes repetitive tasks by processing 8 samples simultaneously. Recommended for use in 96 well plates.

Spacing Between Tips
11/32" (9 mm)

Tip Length
1/16" (17 mm)

Tip Diameter
1/8" (3 mm)

Eight Element Probe


Part No.
630-0602


Cup Horn

The cup horn can process small samples in isolation without probe intrusion, removing the risk of cross contamination or aerosolization. This is especially useful when working with infectious materials.

The water-filled micro cup horn screws into the inverted converter in place of a probe. A tube containing the sample is placed inside the cup horn. The vibrations produced in the cup induce cavitation inside the tube. Inlet and outlet ports enable cooling water to be recirculated within the cup, inhibiting heat build-up during extended operation. A holder for 1.5mL tubes is included.

Outlet connects to 1/2" (13 mm) I.D. tubing.

Inlet connects to 3/8" (9.5 mm) I.D. tubing.

Only for VCX 130W models

Cup Horn


Part No.
630-0608


Flow Cell

The continuous flow cell screws into the converter in place of the probe. This system is recommended for the treatment of low viscosity samples that require short processing times. The main body is glass and the probe and processing chamber are titanium. The volume of liquid needed to fill the chamber is 35mL.

Outlet connects to 1/2" (13 mm) I.D. tubing.

Inlet connects to 3/8" (9.5 mm) I.D. tubing.

Only for 130W models

Flow Cell


Part No.
630-0566


General Accessories
Footswitch
Footswitch

For hands-free operation with 10' (3m) cable.

Part No.
830-00004

VCX 130 and VC 50 only

ROSETTE GLASS COOLING CELLS
Rosette

The rosette is a glass cell that enables uniform treatment at low temperatures. Fill the rosette with your liquid sample and place it in an ice bath. The ultrasonic energy forces the sample to circulate under the probe and through the cooling arms.

300mL Rosette

Part No.
830-00001

30mL Rosette

Part No.
830-00003

JACKETED BEAKERS
Jacketed Beaker

The jacketed beaker is attached to a chiller or another cold water source. The chilled water is circulated around the liquid within the beaker maintaining the desired sample temperature.

10mL cooling cell with water jacket

Part No.
830-00009

100mL cooling cell with water jacket

Part No.
830-00010

REPLACEMENT CONVERTER
REPLACEMENT CONVERTER

Converter with cable for VCX-130 and VC-50 models.

Part No.
CV18

REPLACEMENT CONVERTER
REPLACEMENT CONVERTER

Converter with cable and push button control for VCX-130PB model.

Part No.
CV188

REPLACEMENT WRENCH
REPLACEMENT WRENCH

Two wrenches are required to tighten/remove accessories from converter.

Part No.
830-00026
